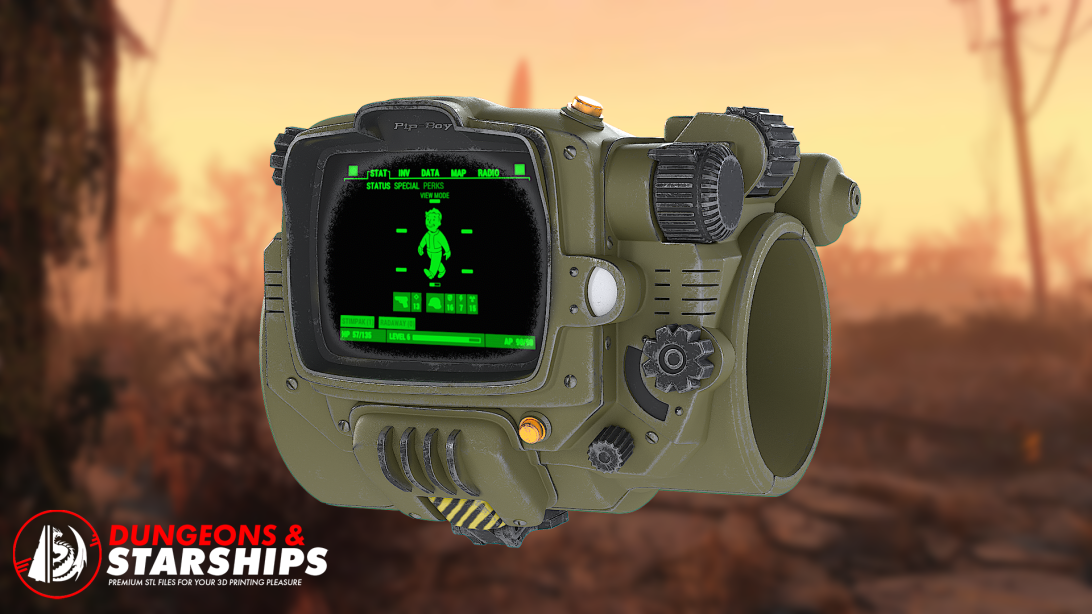

Pip Boy - Fallout

This model is our take on the Pip Boy from Fallout 4 with inspirations from the fallout TV show.

This is quite the complex model, split into several pieces for easy printing and smaller chunks for resin printing.

With the use of 3/32" and 1/8" rolled pins, the clasps and hinges are all mechanical, only requiring a tiny bit of glue to secure the parts into the frame. There is a magnetic versions available for the clasp offering a tighter and more secure enclosure using 10x3mm magnets.

A screen blank has been included for those looking to add their own screens to the exact dimensions, otherwise this can be done with a backlit acrylic screen.

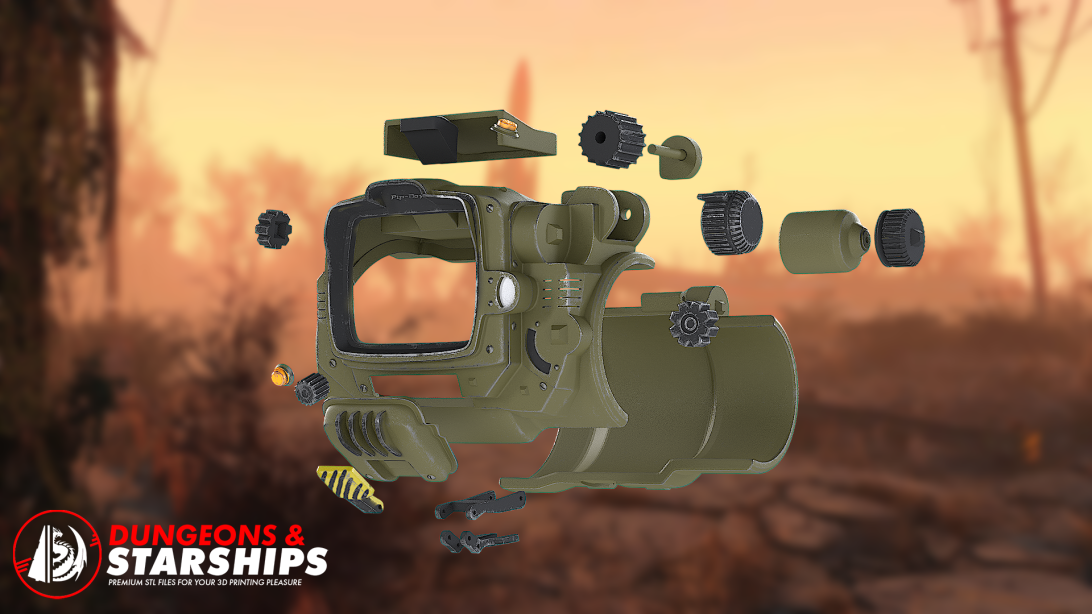

I recommend keeping the exploded view photo up and to dry fit each piece before applying any glue.
